Side clamp unit (Sc)

 280 300 ex. VAT

The side clamp unit is manufactured in high quality steel to ensure a long lifespan and a high level of precision. It can be purchased in three different sizes with the option of either a 80mm or 220mm distance between the mounting holes. There are some installation limitations of the complete side clamp and we strongly advise you to read the product description below before purchasing any specific combination.

Please do not hesitate to contact us if you have any questions.

Clear
SKU N/A Category

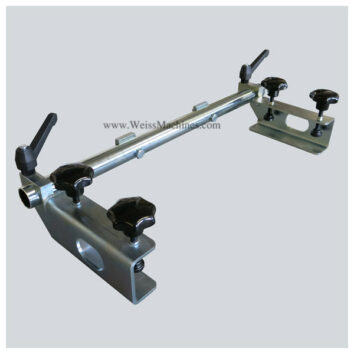

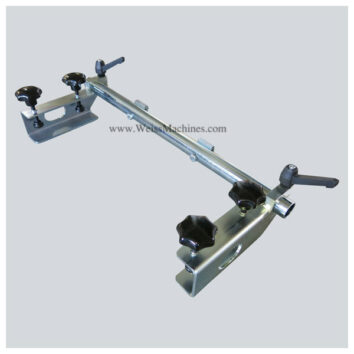

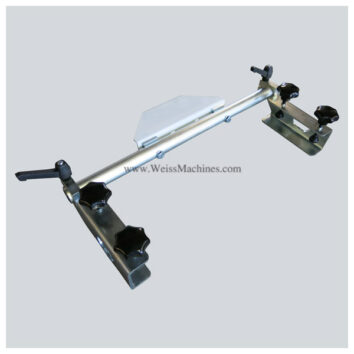

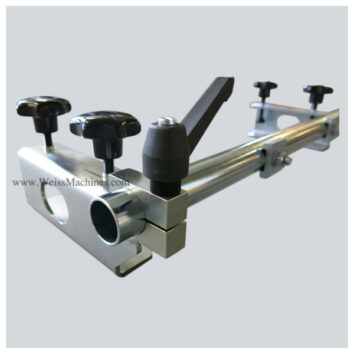

The side clamp unit is made of high quality steel ensuring a long lifespan and a high level of precision. Connected by a steel tube the side clamp unit is equipped with two single side clamps. These are installed with two large M10 knobs with a good grip ensuring a strong fixation of the silk screens. Besides the two knobs a M10 handle is utilized to adjust the attack angle of the silk screen towards the pallet.

The side clamp unit come in three different sizes:

Standard: Width = 655mm (Silk screen sizes up to 620mm)
Compatible with:
1-4 colour SMALL screen print carousel
1-4 colour MEDIUM screen print carousel
6 colour MEDIUM screen print carousel with micro registrations or micro registration mock-ups

Large: Width = 935mm (Silk screen sizes up to 900mm)
Compatible with:
1-4 colour SMALL screen print carousel with the extra powerful elevating spring(s).
1-4 colour MEDIUM screen print carousel

X-Large: Width = 1055mm (Silk screens sizes up to 1020mm)
Compatible with:
1-4 colour MEDIUM screen print carousel

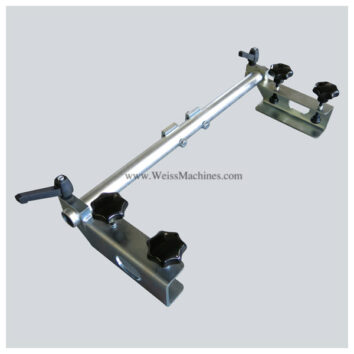

Within each size of the side clamp unit it can be purchased with either 80mm or 220mm distance between the mounting holes. The field of application is listed below.

80mm distance:
– Direct installation on the silk screen elevating arm without any micro registration or micro registration dummy.

220mm distance:
– Direct installation on any micro registration or micro registration dummy.
